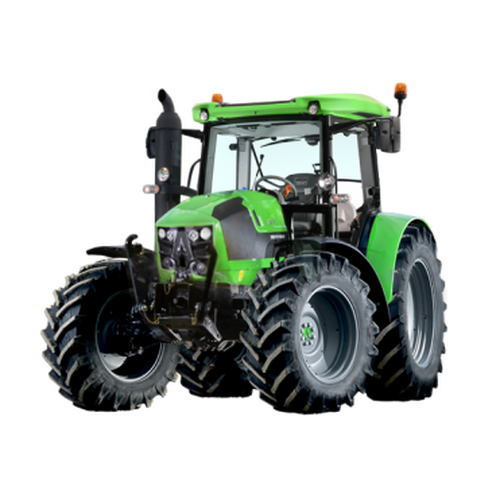

5 SERIES (TIER 4 FINAL)

Open field
deutz-fahr logo

Max Power

126Hp / 94Kw

Max Torque

500 NM

Cylinders

4

THE LARGEST RANGE OF UTILITY TRACTOR MODELS

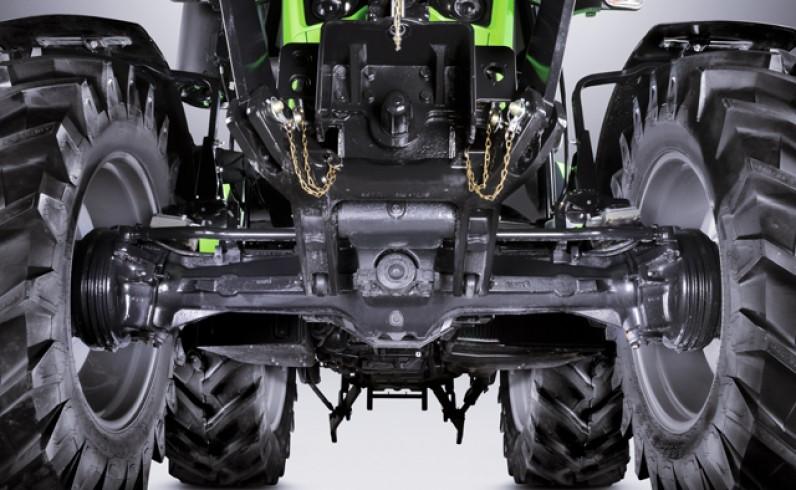

For efficient work with utility tractors, working, driving and operating comfort are just as important as versatility. Arable farms, dairy farms, livestock farms and municipal applications – the range of work is increasingly varied, and the working day increasingly long. Only if a utility tractor meets every aspect of the working profile can it be commercially successful. Only if the level of comfort is right will the performance and motivation of drivers remain high for a long time. DEUTZ-FAHR has developed the new 5 Series with this in mind. Three models with outputs of 110 hp to 126 hp stand out for superior comfort in addition to their versatility and reliable German technology. The highly comfortable cab of the new 5 Series is supported on the latest design of “Hydro Silent-Block” suspension mounts. The gear shift lever has been redesigned as the gears are now easily selected using a Bowden cable design. An up to 40% reduction in cab noise and vibrations is the result. The new suspension on the front axle ensures greater driving comfort, safety and traction in all ground conditions. At the same time, the new light package guarantees optimal vision during poor visibility. Whatever demands you have of a utility tractor, DEUTZ-FAHR can meet them with state-of-the-art technology, a wide range of configuration options and an extraordinary level of comfort. At DEUTZ-FAHR you will find the largest selection of utility tractor models.

Engine
car-engine icon

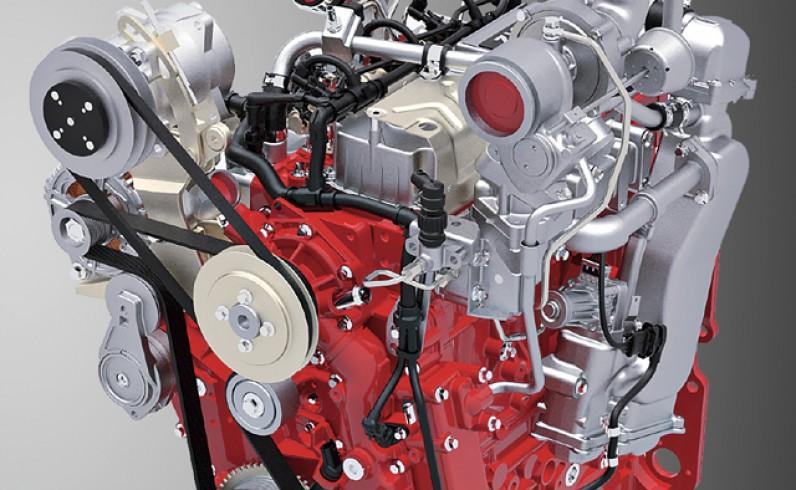

DEUTZ 3.6 STAGE 4 (TIER4 FINAL) COMFORTABLE PERFORMANCE. KIND TO THE ENVIRONMENT

High performance, reliability and environmental friendliness – the new and compact Deutz 3.6 Stage 4 (Tier4 Final) four-cylinder engines with an output of 110–126 hp deliver on average 5% more power and torque than the previous generation. At the same time, fuel consumption is extremely low. The maximum available torque is 1,600 rpm with a torque reserve of 32%. The power remains at the highest level for a wide rpm range from 1,800 to 2,200 rpm. Cutting-edge engine technology such as the diesel oxidation catalyst (DOC) catalytic converter and selective catalyst reduction (SCR) system ensure a flawless environmental footprint. Engine efficiency is supported by the PowerCore air filter and the cooling system with its viscous fan (optional). The cooling system can be accessed almost instantly. Two pull-out dust screens make cleaning and maintenance work much easier.

read more
Transmission
car-engine icon
EFFICIENT TRANSMISSION. SELECT THE GEAR WITHOUT COMPROMISE

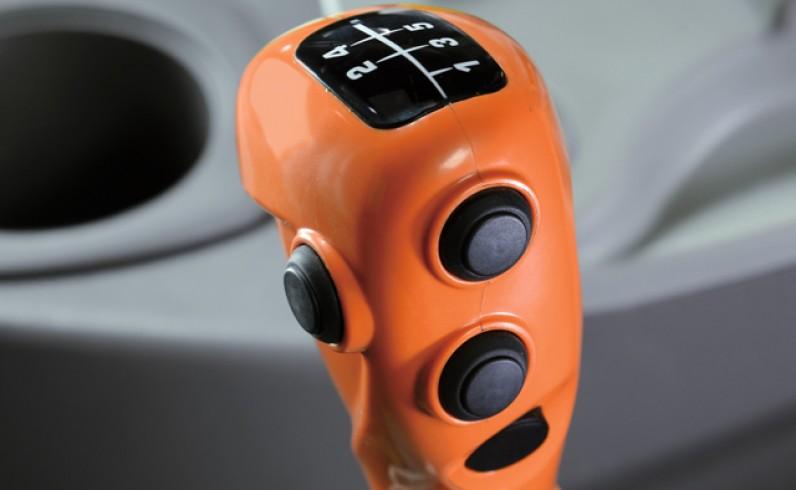

When it comes to the transmission, the new 5 Series shows just how adaptable a utility tractor can be. For all variants, maximum efficiency is guaranteed by a highly efficient five-speed transmission with electro-hydraulic reverse shuttle and up to four gear ranges (slow, fast, creep and super creep) with two or three Powershift speeds and 20 to 60 forward and reverse gears. Driving at 40 km/h ECO with a reduced engine speed goes without saying. Thanks to Powershift technology, engine speed can be increased or decreased under load simply by pressing a button on the gear shift lever without activating the clutch. The electro-hydraulic reverse shuttle is equipped with two long-life wet multi-plate clutches. This makes it possible to change direction at speeds up to 13 km/h even under load. Standard equipment includes Powershuttle and the convenient Stop&Go function for stopping and moving off without using the clutch.

read more
PTO & Hydravlics
car-engine icon
MOVING THE HEAVIEST EQUIPMENT WITH THE GREATEST CONVENIENCE

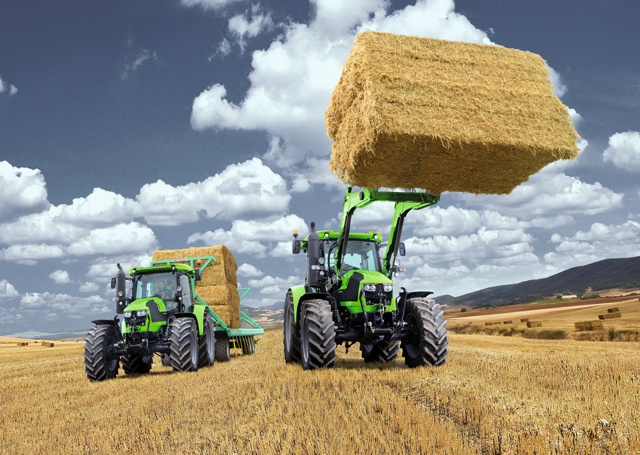

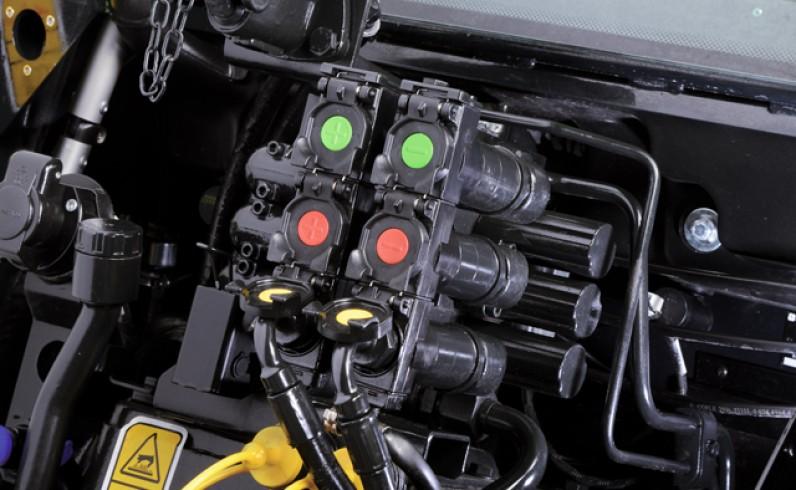

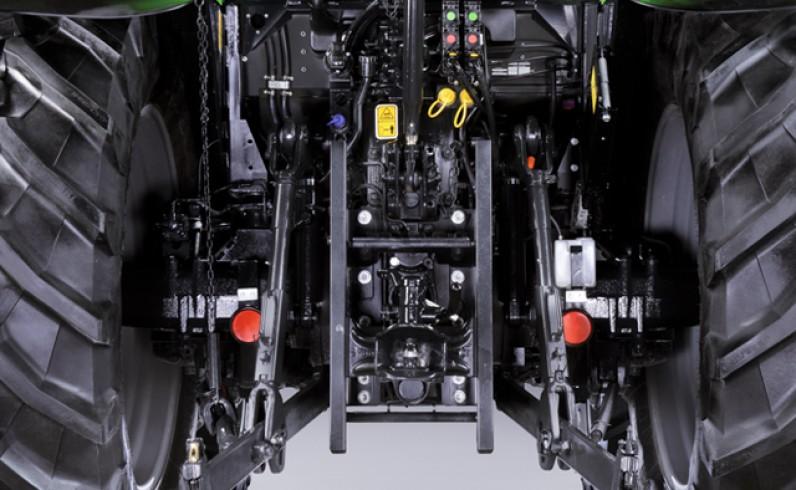

PTO When you’re driving in the field, you know you’ll get the job done. No matter what obstacles you may find. You’re at home when in the field. This is where you deliver your top performance. Just like the new 5 Series. With respect to the PTO, the new 5 Series offers much more than the average utility tractors. At the rear, there are up to four PTO speeds: 540/540 ECO and 1000/1000 ECO. The front PTO runs at 1,000 rpm. The electro-hydraulic engagement with automatic function depending on the rear lifting position is included as standard. An impressive rear lifting capacity of 5,400 kg. The front linkage can lift a considerable 2,100 kg. As an option, the rear lift is available with mechanical or electronic control. External PTO and rear lift controls ensure straightforward equipment mounting and external equipment operation. HYDRAVLICS The attachment points also demonstrate how well a utility tractor would suit your farm. With the new 5 Series, you can have almost any conceivable equipment combination under precise control. 3 hydraulic systems are available – 55 l/ min, 60 l/min ECO, 90 l/min. Double open centre hydraulic pumps with a capacity of up to 90 l/min and new high-flow hydraulic valves deliver impressive performance – but only when it is needed, of course. Up to four control valves can be used – three mechanical and one electric. Here there is a flow rate of up to 80 l/min as well as a wide range of operating modes, such as float position, continuous flow and a kick-out function. The rear lift and auxiliary control valves can be operated independently of each other.

read more
Cabin
car-engine icon
WORKING COMFORT WITH CUTTING EDGE TECHNOLOGY

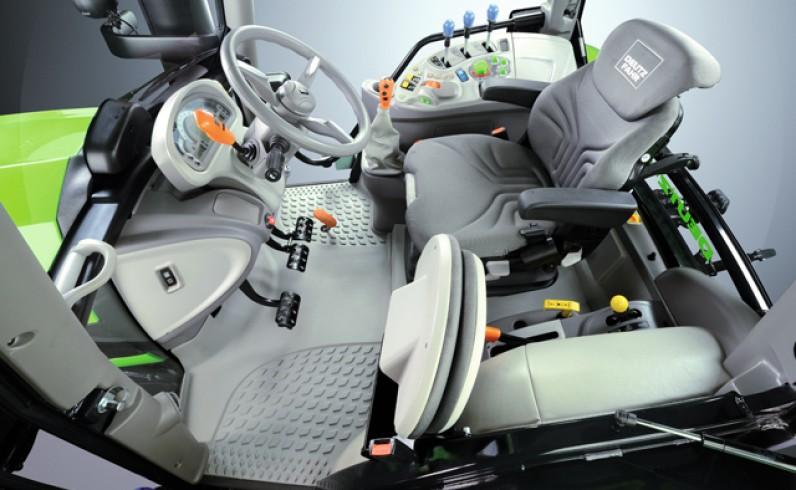

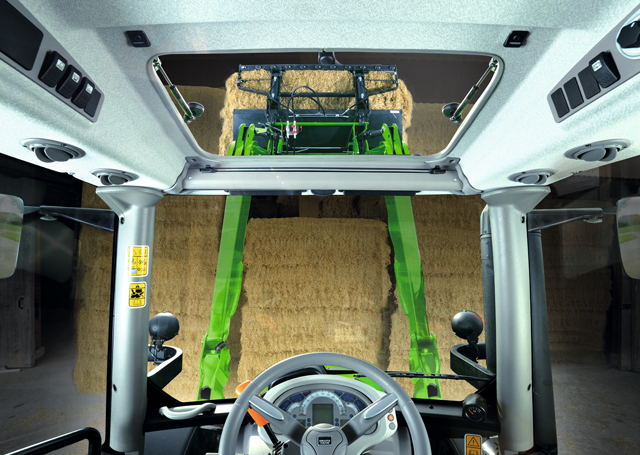

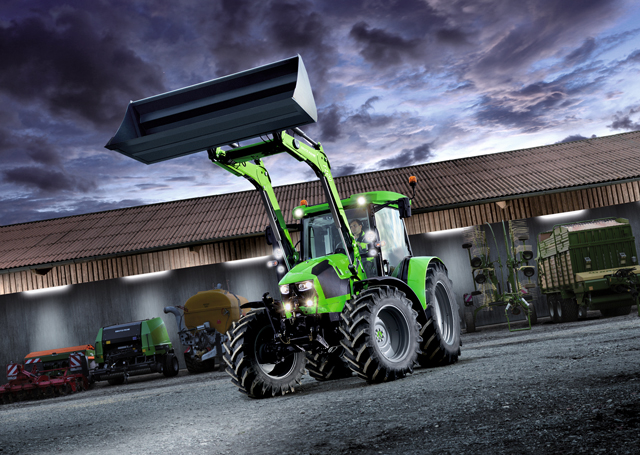

WORKING COMFORT WITH CUTTING EDGE TECHNOLOGY. Anyone who sits inside the new 5 Series will immediately notice that the new cab is the embodiment of comfort and peace. The design is similar to that of a comfortable car. Smooth curves, a bright, friendly atmosphere, controls within easy reach and clear visibility on all sides promote fast and efficient work. The difference to a car is that when you start the engine, you feel pure power and nothing else. Noise and vibrations remain outside. The cab is supported on the latest design of “Hydro Silent-Block” suspension mounts that absorbs up to 40% more vibrations than the previous versions. At night or when visibility is poor due to adverse conditions, the light package with eight work lights (six in the roof and two on the side posts) plus two working headlights and two LED lights in the bonnet guarantees perfect illumination of the entire working area. Three roof designs are available: a standard roof with FOPS safety features, a glass roof without FOPS and an open-view polycarbonate roof with FOPS safety features for optimal visibility upwards for front loader operations. Whatever tractor tasks need to be carried out, the modern and stylish cab motivates drivers to enjoy their daily workplace. Day after day. DEUTZ-FAHR CONVENIENCE MEANS THAT EVERYTHING WORKS AT THE PUSH OF A BUTTON. For DEUTZ-FAHR, working comfort means that the tractor adapts to the driver and not vice versa. The cab has been revised with the aim of making the operation fast, straightforward and intuitive for all kinds of work. As is customary with DEUTZ-FAHR, all controls are clearly colour-coded and logically arranged according to their frequency of use. The illuminated InfoCentre in the steering column provides the driver with with all the required information about the tractor’s operating status – logical and clearly presented. The re-designed gear shift lever now allows convenient gear shifting at the push of a button using Bowden cables. In another new development, the auxiliary valve controls are operated in the right-hand console. These can be used in a wide range of operating modes and locking functions, which can be selected precisely, conveniently and reliably. Furthermore, it is now possible to store two engine speeds. During routine work, the most efficient range for working or driving can be activated at the push of a button.

read more
Name:
Engine
Type
Cylinders/Displacement
Injection
Max Power
Max Torque
Fuel
Transmission & Axes
Transmission
Reverse system
Gearbox Ratio (front+back)
Max Speed
Hydravlics
Lift front/back (kg)
Pump (lt/min)
Valves-Ports
PTO
PTO Front (Lift - Speed)
PTO Speed (rpm)
Differential Lock Control PTO
