AGROPLUS F ECOLINE εικόνα

AGROPLUS F ECOLINE

Vineyards & Orchards
deutz-fahr logo

Max Power

71Hp / 52.9Kw

Max Torque

373 NM

Cylinders

4

EXTRAORDINARILY FUNCTIONAL SIMPLICITY

The Agroplus F Ecoline series embodies the essence of simplicity, with a single piece cowl, SDF TIER III engines, a low driver seat, short wheel base and outstanding agility and manoeuvrability. These are simple but extraordinarily practical and functional tractors capable of working with any implement. Ideal for the small to medium farm, these tractors strike the perfect balance between superior performance and low running costs.

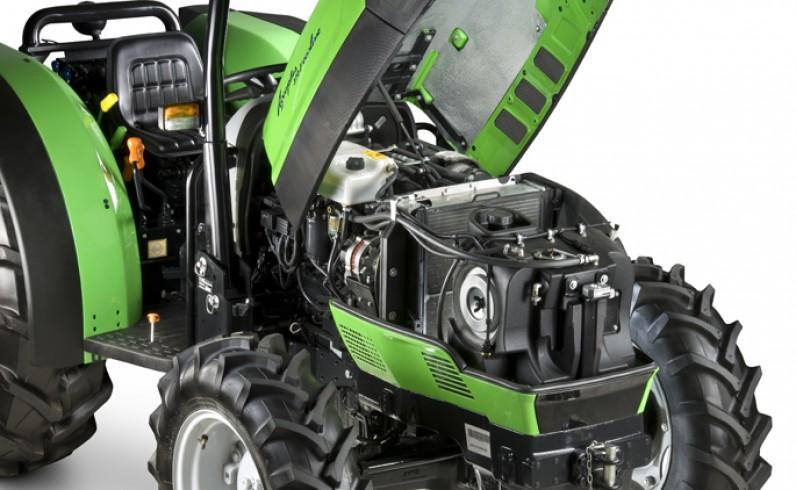

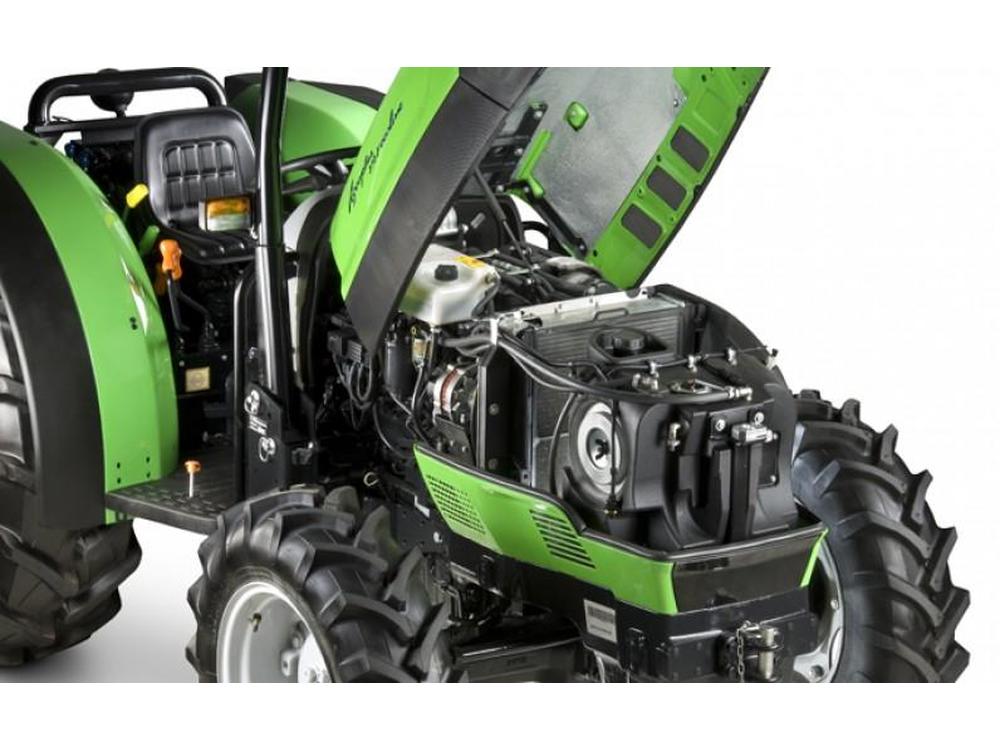

Engine
car-engine icon
Reliable, functional and clean engines.

Agroplus F Ecoline tractors are equipped with three and four cylinder SDF Series 1000 TIER III engines with simple turbo or turbo-intercooler forced induction and an electronic governor system. Incredibly tough and reliable, these engines are specifically built to keep on working uninterruptedly for hours on end with low running costs and extremely limited maintenance for minimised loss of productivity. The modern high pressure injection system uses a single pump for each cylinder. This is a far more advanced solution than the rotary or in-line pumps used in conventional injection systems, and ensures superlative performance with extraordinary reliability. Euro III A engines are equipped with HRT (Hydraulic Roller Tappets) technology, a system controlled by an electrohydraulic valve to optimise the injection of fuel into the combustion chamber. During engine starts while the engine oil is still cold, the system increases valve lift slightly to advance the injection timing, optimising engine efficiency right from the start of the day and in any weather conditions, and eliminating the unpleasant white exhaust smoke typically produced by engines under cold starting conditions. The fuel injection system is controlled electronically by the engine management ECU, which continuously monitors engine load and optimised engine function accordingly. The driver can also set and store engine speeds for specific operations. Whenever an application calls for a constant engine speed, the governor automatically maintains the preset engine speed value. This increases productivity and also makes headland turns quicker and easier. Agroplus F Ecoline also features internal EGR exhaust gas recirculation (with recirculation taking place directly in the combustion chamber). During the intake cycle, a dedicated cam lobe keeps the exhaust valve partially open. This mixes a small proportion of exhaust gas and returns it to the cylinder, where a second combustion process eliminates any unburnt hydrocarbon particulate, keeping exhaust emissions as low as possible.

read more
Transmission
car-engine icon
A modular, smooth transmission, for greater efficiency and fuel economy.

Agroplus F Ecoline series tractors are equipped with an extremely efficient mechanical transmission with the ideal number of intelligently spaced ratios, with a five-speed for a top speed of 40 km/h, and a synchronised reverse shuttle for significantly less time-consuming transport and transfer jobs. As an option, the transmission may be equipped with a mechanical underdrive gear (with control incorporated in reverse shuttle lever) for an impressive total of thirty speeds (twenty + ten), which may be increased even further to forty-five speeds (thirty + fifteen) with the addition of a supercreeper gear. The transmission lever is situated on the right hand side of the driver seat in all models in the series; while the synchronised reverse shuttle control lever is next to the transmission lever, for immediate direction inversions.

read more
PTO & Hydravlics
car-engine icon
Dependable power and outstanding manoeuvrability.

PTO The rear PTO is offered with 540/540ECO/1000 rpm speed modes. The optional synchronised PTO is ideal for transport applications on steep gradients and is extremely useful for operating driven axle trailers. The rear PTO is mechanically and simply engaged from a lever on the left hand side of the driver seat. The lever control lets the driver engage drive gradually to protect the components of the PTO system. HYDRAVLICS With a hydraulic steering system fed by a gear pump for effortless, smooth and responsive steering action, these tractors are astonishingly nimble even in the most challenging conditions. Four or six way distributors are offered, while a flow regulator makes it possible to use more than one auxiliary distributor simultaneously. The flow regulator dial linked to the second auxiliary distributor ensures the ideal delivery rate for all applications. The rear lift, with an impressive capacity of 3000 kg, is equipped with a simple but extremely effective mechanical draft sensing system on the three point linkage: the movement of the three point linkage bracket is controlled by a hitching valve via an oscillating bar and an actuator arm.

read more
Cabin
car-engine icon
The perfect driving position.

Conceived according to the latest standards for space usage and ergonomics, the driver area of Agroplus F Ecoline tractors is roomy and comfortable. Suspended pedals and an adjustable steering wheel ensure the ideal driving position, while special deflectors in clear polycarbonate protect the driver against soil and mud debris and ensure an unobstructed view of the front wheels.

read more
Name:
Engine
Type
Cylinders/Displacement
Injection
Max Power
Max Torque
Fuel
Transmission & Axes
Transmission
Reverse system
Gearbox Ratio (front+back)
Max Speed
Hydravlics
Lift front/back (kg)
Pump (lt/min)
Valves-Ports
PTO
PTO Front (Lift - Speed)
PTO Speed (rpm)
Differential Lock Control PTO
