DORADO NATURAL

Open field
same logo

Max Power

97Hp / 72.3Kw

Max Torque

369 NM

Cylinders

3

THE IDEAL ALL-ROUNDER

Powered by FARMotion engines, the SAME Dorado Natural is the most versatile machine in its class. It's just as home working in the open field as it is in cramped spaces, such as in cow sheds. With effective technology, superior comfort and a wide choice of configurations, this perfect all-rounder is an ace up your sleeve.

Engine
car-engine icon
An engine conceived for farming. In day to day use, the difference this makes is clear!

The Dorado Natural family is equipped with advanced 3 cylinder FARMotion engines with power outputs from 70 to 100 HP. These are compact, reliable and efficient maintenance with minimal maintenance. 2,000 bar Common Rail injection and turbo-intercooler forced induction ensure outstanding performance, with practically constant power delivery over a wide range of engine speeds, impressive torque right from the bottom end of the rev rage and low fuel consumption. With a combination of electronically controlled external EGR exhaust gas recirculation and a maintenance-free DOC catalytic converter, FARMotion engines comply with Stage III B emissions control regulations.

read more
Transmission
car-engine icon
The Dorado Natural lets you set the pace you need in the field

For even greater versatility, efficiency and practicality, Dorado Natural tractors are offered with a choice of two transmission configurations. The standard variant is based on a 5 speed gearbox with 3 ranges and a reverse shuttle (for a total of 15+15 speeds), allowing the tractor to work at a ground speed of just 287 m/h at maximum engine speed in the lowest ratio available, and - at the other end of the spectrum (with overspeed) - permitting a top speed of 40 km/h at just 1,870 rpm (with 420/70 R30 tyres). An optional splitter, controlled from a lever situated conveniently under the steering wheel, doubles the number of forward speeds, increasing the total number of ratios available to 30+15. Other standard features on Dorado Natural tractors are electrohydraulically engaged all-wheel drive and front and rear differential locks.

read more
PTO & Hydravlics
car-engine icon
Everything you need, and more

For maximum productivity when working with implements, the Dorado Natural family is equipped with a 50 l/min pump which in addition to the lift, also delivers oil to the 4-way (or optional 6-way) mechanically controlled rear distributors. For impeccably smooth steering action even at the lowest engine speeds, the steering circuit is fed by a dedicated, separate 18 l/min pump. The rear lift, with the legendary efficiency typical of a SAME mechanically controlled unit, has a maximum capacity of 2,500 kg, which may be increased to 3,500 kg with optional supplementary cylinders. The PTO comes as standard with 540 rpm and 540 ECO speed modes, while a 1,000 rpm mode or ground speed mode may also be added as an option. The mechanically controlled PTO clutch may be engaged progressively from a manual lever.

read more

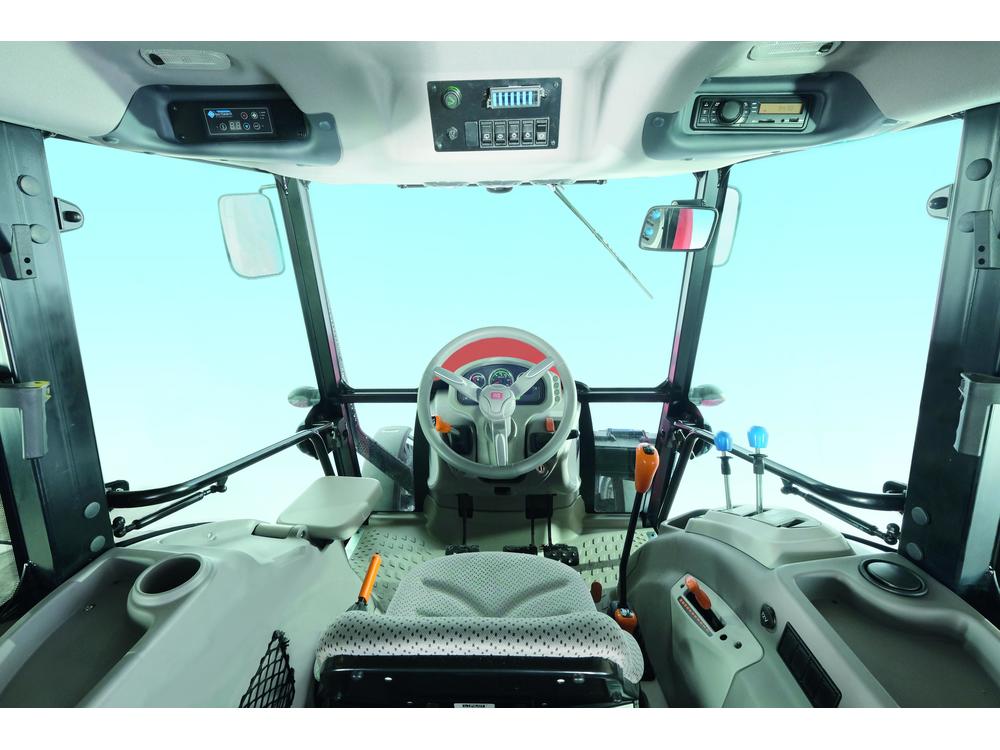

Cabin
car-engine icon
Top class comfort

Painstaking design and development has given the Dorado Natural family a comfortable and ergonomic cab, with excellent all-round visibility, mechanically sprung (or, as an option, air sprung) seat suspension adjustable effectively for the weight of the driver, and intelligently organised controls. The new analogue/digital display moves together with the adjustable rake steering column to ensure that all the main operating parameters of the machine are clearly visible at all times. A panoramic roof is also available which significantly improves upward visibility, for even greater safety when working with overhead loads.

read more
Name:
Engine
Type
Cylinders/Displacement
Injection
Max Power
Max Torque
Fuel
Transmission & Axes
Transmission
Reverse system
Gearbox Ratio (front+back)
Max Speed
Hydravlics
Lift front/back (kg)
Pump (lt/min)
Valves-Ports
PTO
PTO Front (Lift - Speed)
PTO Speed (rpm)
Differential Lock Control PTO
