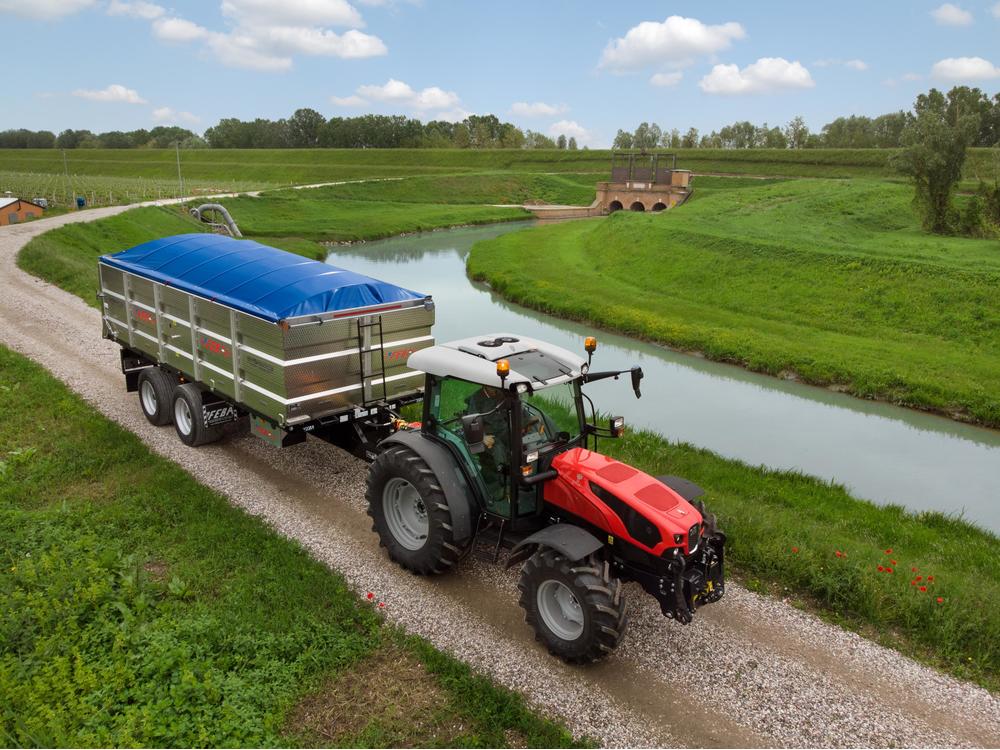

DORADO (Stage V)

Open field

Max Power

106Hp / 79Kw

Max Torque

433 NM

Cylinders

Features

MANOEUVERABILITY AND VERSATILITY ARE ENHANCED BY THE FARMOTION 45 ENGINE

In addition to inheriting all the features and technologies that have distinguished the Dorado range, the new SAME Dorado Stage V models offer new features designed to maximise productivity and comfort. The optimum power-to-weight ratio makes these tractors perfect for all seeding and haymaking tasks, while the overall compactness also makes these tractors ideal for working in orchards, hop fields and vineyards with wide trellises.

The revised Dorado family is now powered by a choice of 3 and 4 cylinder latest generation FARMotion engines developed specifically for agricultural applications: that is compact, reliable, efficient and with minimal maintenance requirements. With a high pressure Common Rail injection system, they provide high performance, constant power and torque curves even at low rpm, with reduced fuel consumption. A combined aftertreatment system with external EGR (exhaust gas recirculation) and a DOC catalytic converter ensures that Dorado tractors comply with Stage III B emissions regulations.

Dorado offers different gearbox configurations to enhance its versatility, efficiency and ease of use: from the mechanical 30+15 gearbox to the 3-stage Powershift for a total 45 forward and reverse speeds. For manoeuvring with even greater safety and precision, all models with the hydraulic reverse shuttle (GS) also feature the Stop&Go system, which lets the driver stop and hold the tractor with the brake pedal only and set off again seamlessly and without jolting. Also on the road handling is excellent thanks to the Overspeed solution that makes it possible to reach 40 km/h in ECO (economy) mode.

To allow the best use of equipment, Dorado has a 54 l/min pump and three 6-way auxiliary distributors with flow regulator. The entire hydraulic system has been designed to guarantee maximum efficiency and versatility. The rear, electronically controlled lifter can support up to 3600 kg. A new 2100 Kg front lift and 1000 rpm front PTO are also available as options. To enhance the versatility, the rear PTO is available in the 3 speeds 540/540E/1000 and in the forward ground speed version.

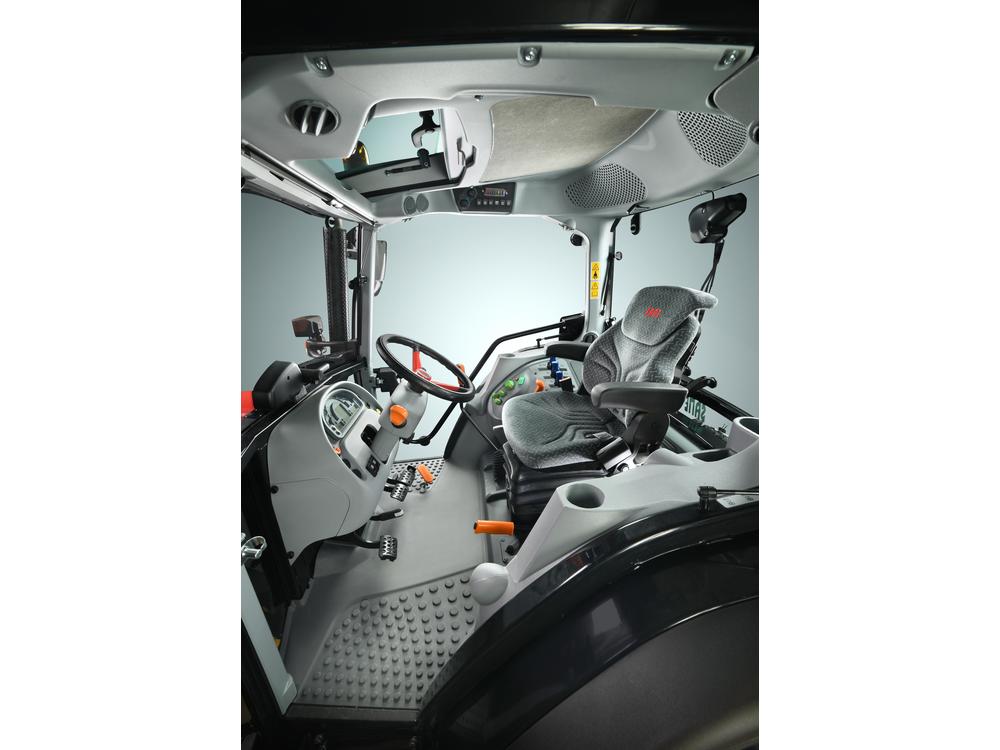

Dorado delivers outstanding comfort. The four-pillar cab ensures unobstructed all-round visibility and offers the driver a comfortable and ergonomically designed working environment. The driver's seat has air suspension to perfectly adapt to the weight and height of the driver and all the controls are at your fingertips. Two roof versions are available, the standard version enhances the compactness of the tractor, while the 'high visibility' version enhances upward front visibility.

	Name:
Engine
Type
Cylinders/Displacement
Injection
Max Power
Max Torque
Fuel
Transmission & Axes
Transmission
Reverse system
Gearbox Ratio (front+back)
Max Speed
Hydravlics
Lift front/back (kg)
Pump (lt/min)
Valves-Ports
PTO
PTO Front (Lift - Speed)
PTO Speed (rpm)
Differential Lock Control PTO
