DORADO NATURAL (Stage V)

Open field

Max Power

102Hp / 76.1Kw

Max Torque

417 NM

Cylinders

Features

NATURALLY A WINNER.

Powered by new FARMotion 35 engines, the SAME Dorado Natural is the most versatile machine in its class. It's just as home working in the open field as it is in cramped spaces, such as in cow sheds. With effective technology, superior comfort and a wide choice of configurations, this perfect all-rounder is an ace up your sleeve.

The Dorado Natural family is equipped with advanced 3 cylinder FARMotion 35 engines with power outputs from 66 to 102 HP. These are compact, reliable and efficient maintenance with minimal maintenance. 2,000 bar Common Rail injection and turbo-intercooler forced induction ensure outstanding performance, with practically constant power delivery over a wide range of engine speeds, impressive torque right from the bottom end of the rev rage and low fuel consumption. Thanks to electronically controlled external EGR exhaust gas recirculation combine with a DOC+DPF (70-80 models) or DOC+DPF+SCR (90-100 models), FARMotion 35 engines comply with Stage V emissions control regulations.

For even greater versatility, efficiency and practicality, Dorado Natural tractors are offered with a choice of two transmission configurations. The standard variant is based on a 5 speed gearbox with 3 ranges and a reverse shuttle (for a total of 15+15 speeds), allowing the tractor to work at a ground speed of just 298 m/h at maximum engine speed in the lowest ratio available, and - at the other end of the spectrum (with overspeed) - permitting a top speed of 40 km/h at just 1,800 rpm (with 420/70 R30 tyres). An optional splitter, controlled from a lever situated conveniently under the steering wheel, doubles the number of forward speeds, increasing the total number of ratios available to 30+15. Other standard features on Dorado Natural tractors are electrohydraulically engaged all-wheel drive and front and rear differential locks.

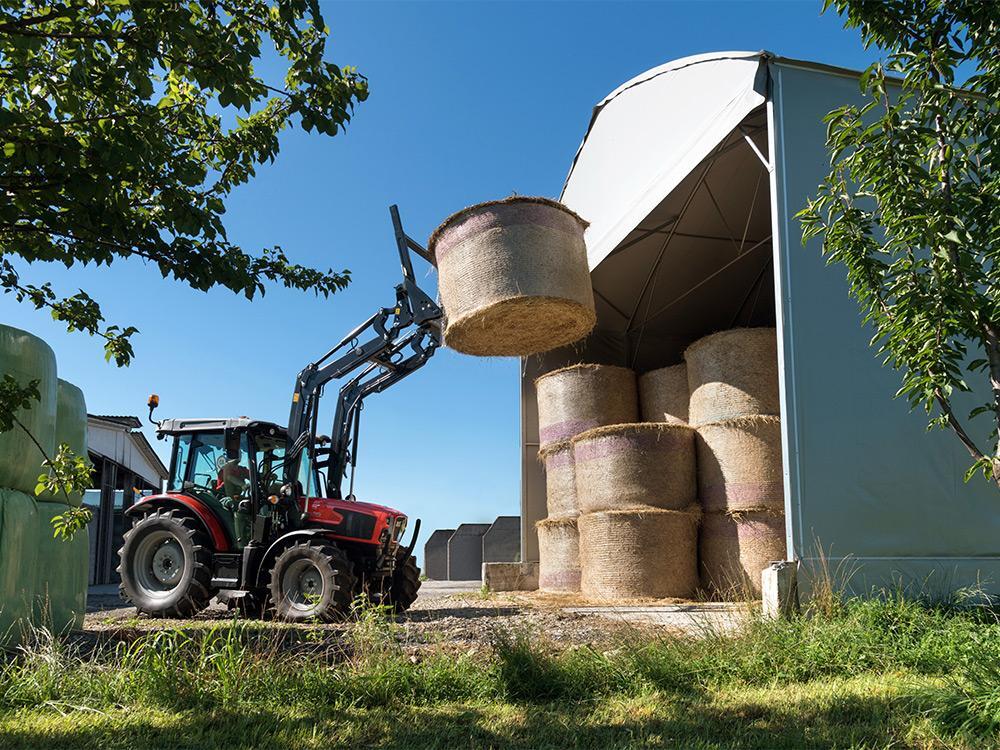

For maximum productivity when working with implements, the Dorado Natural family is equipped with a 56 l/min pump which in addition to the lift, also delivers oil to the 6-way mechanically controlled rear distributors. For impeccably smooth steering action even at the lowest engine speeds, the steering circuit is fed by a dedicated, separate 20 l/min pump. The rear lift, with the legendary efficiency typical of a SAME mechanically controlled unit, has a maximum capacity of 3,500 kg. In addition is now available the EasyLift control that allows to raise and lower the implements using a single button on the consolle. The PTO offers up to 3 speeds (540/540 ECO/1000) and groundspeed function. The mechanically controlled PTO clutch may be engaged progressively from a manual lever.

Painstaking design and development has given the Dorado Natural family a comfortable and ergonomic cab, with excellent all-round visibility, mechanically sprung (or, as an option, air sprung) seat suspension adjustable effectively for the weight of the driver, and intelligently organised controls. The new analogue/digital display moves together with the adjustable rake steering column to ensure that all the main operating parameters of the machine are clearly visible at all times. A panoramic roof is also available which significantly improves upward visibility, for even greater safety when working with overhead loads.

	Name:
Engine
Type
Cylinders/Displacement
Injection
Max Power
Max Torque
Fuel
Transmission & Axes
Transmission
Reverse system
Gearbox Ratio (front+back)
Max Speed
Hydravlics
Lift front/back (kg)
Pump (lt/min)
Valves-Ports
PTO
PTO Front (Lift - Speed)
PTO Speed (rpm)
Differential Lock Control PTO
